Bathrooms

4

Half Baths

2

Height

1'

Buy Plan 23-051

Please read Terms and Conditions before purchase.

Design Your Home

Need changes to make this plan truly yours? Get a quick, free estimate and personalized advice  –  let’s personalize this design to fit your specific needs today.

Expert Plan Review

Before you build, get clarity. Our seasoned design team is ready to provide authoritative answers on techinal specifications and custom modifications.

Copyright By Designer

Plan Description

Step into the Plan 23-051, a dwelling where the heart of Texas Hill Country meets the clean lines of Modern Craftsman design. It's more than just a house; it's a 4405 square foot sanctuary designed for living deeply and fully.

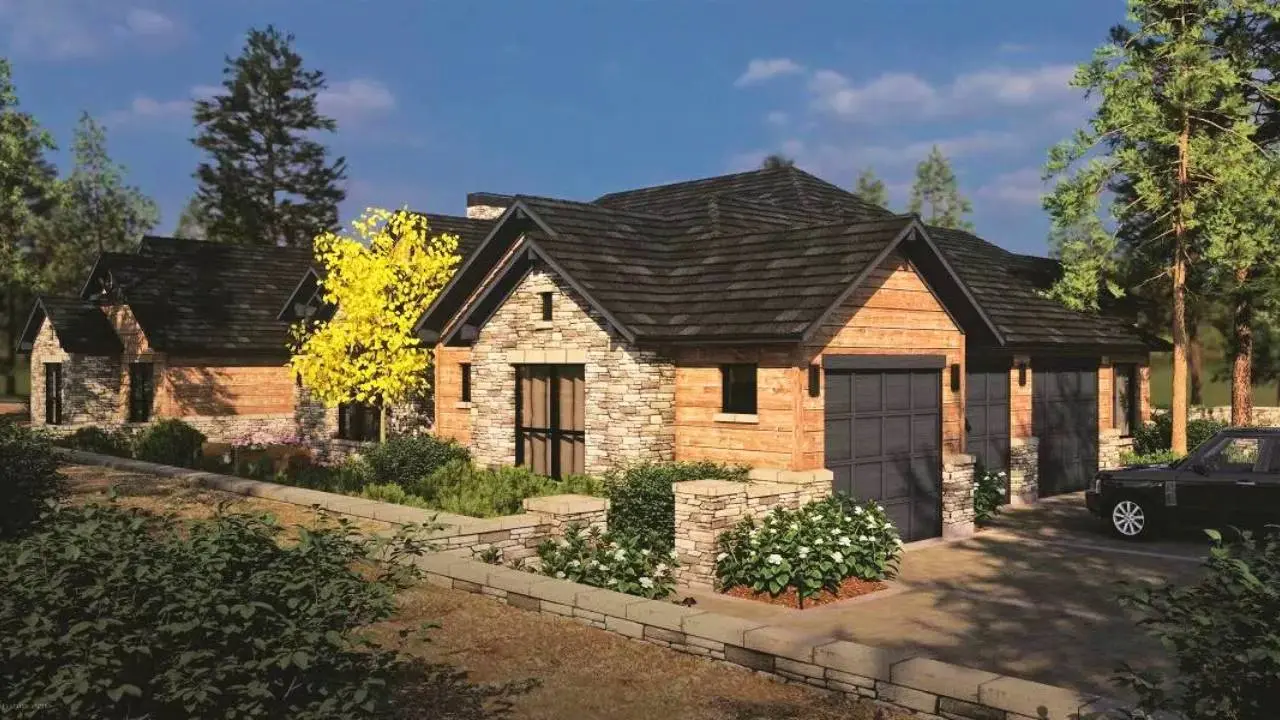

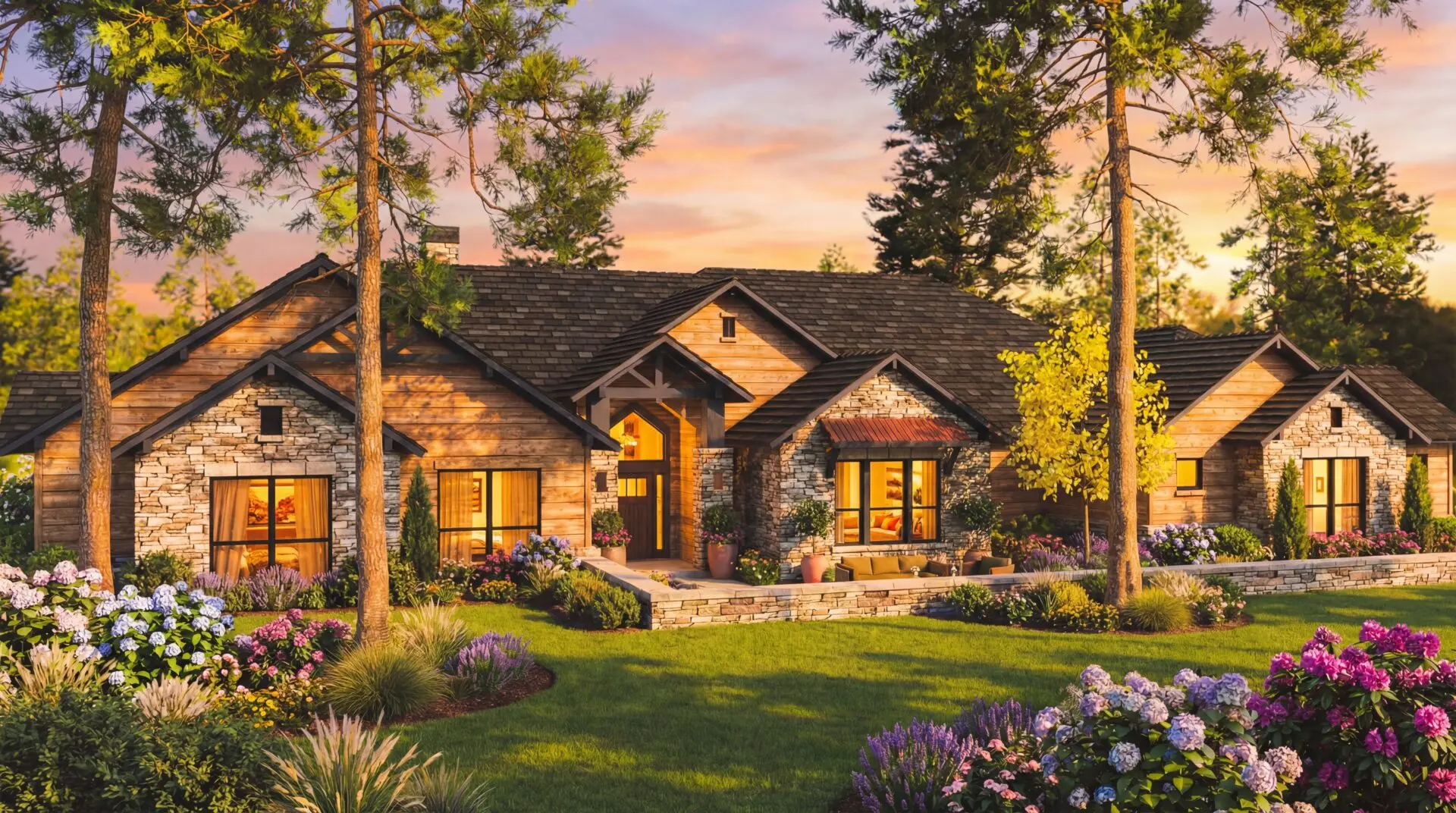

As you approach, the exterior greets you with a blend of light-colored natural stone and warm wood siding, crowned by a complex, multi-gabled roof. Dark timber trusses accent the gables, creating a visual depth that feels both grand and welcoming. The recessed front entrance, sheltered by a gabled porch and heavy timber columns, invites you inside.

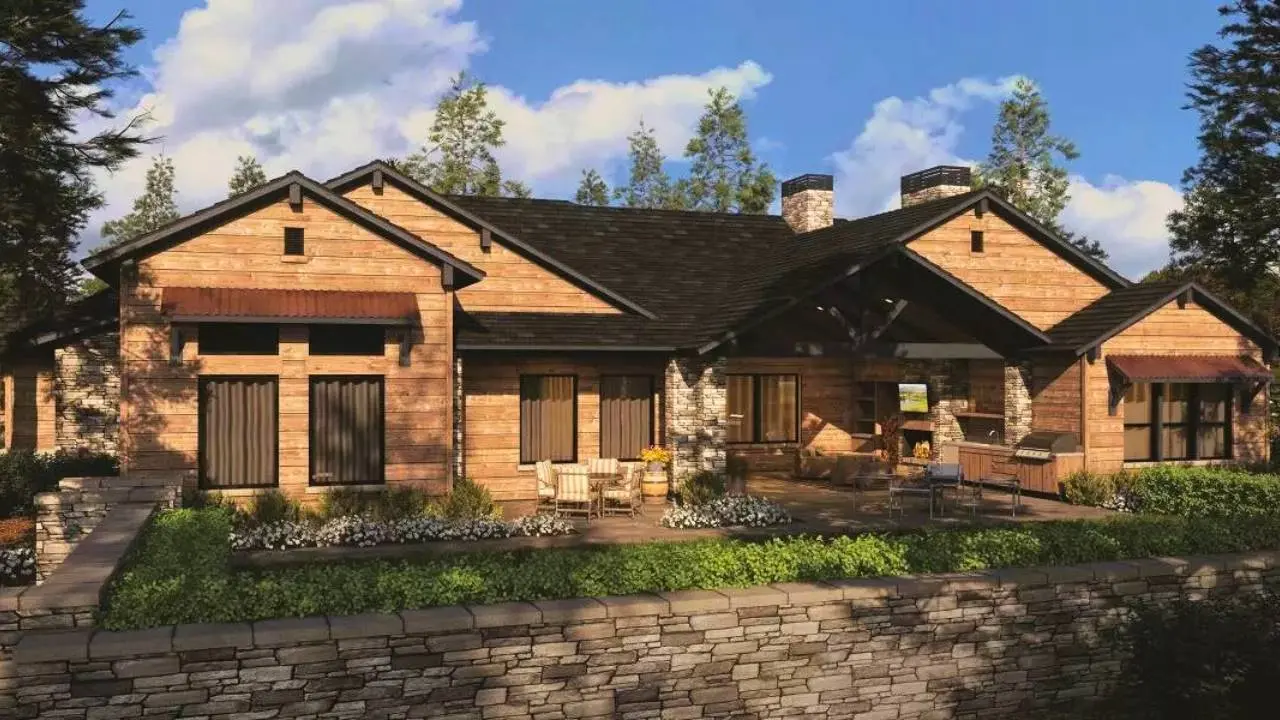

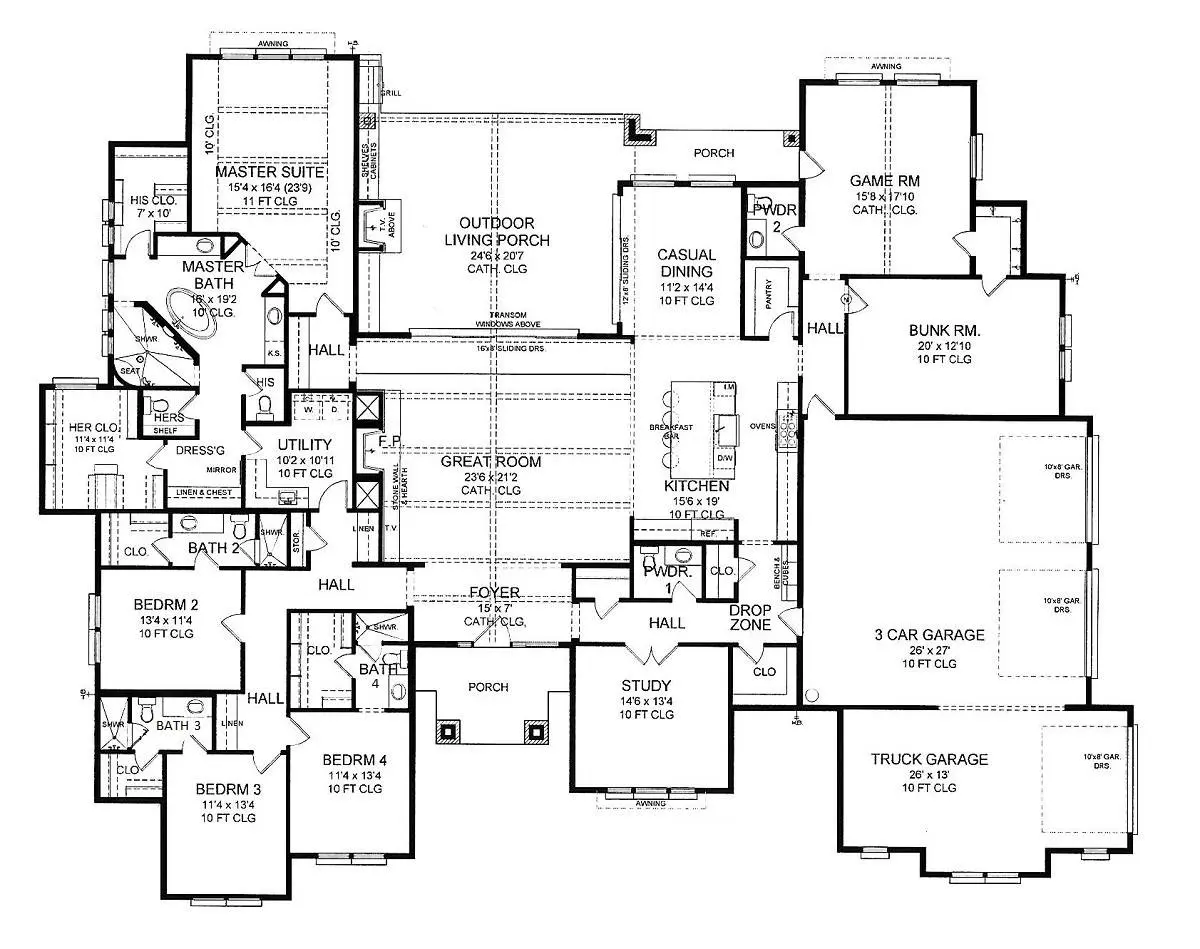

The flow of this home is thoughtfully designed. Entering through the covered front porch, the foyer unfolds into a spacious great room, where a vaulted ceiling and fireplace create an atmosphere of warmth. The open-concept kitchen, complete with a large island and walk-in pantry, is a culinary dream. Adjacent to the kitchen, the casual dining area offers sliding door access to an expansive outdoor living porch, perfect for entertaining or quiet evenings under the stars.

The left wing of the house is your private retreat, with a master suite that promises relaxation. The master bedroom, with its 11-foot ceiling, leads into a master bath featuring separate vanities, a luxurious shower, and a central tub. The two walk-in closets and a dressing area ensure that your personal space remains uncluttered and serene.

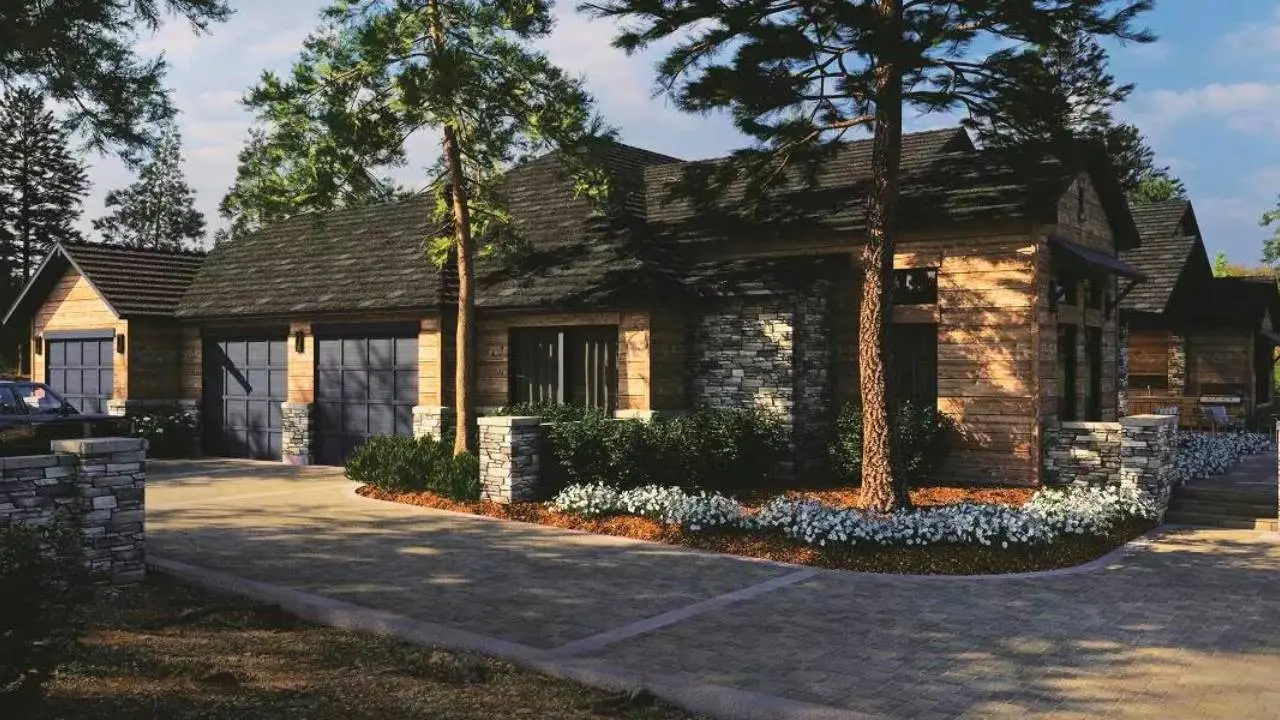

On the opposite side of the home, the service and entertainment zone offers a bunk room and a game room, perfect for family fun or hosting friends. The three-car garage and separate truck garage provide ample space for vehicles and storage.

Plan 23-051 isn't just a house plan; it's a blueprint for a life well-lived, a place where every detail contributes to a sense of comfort, style, and belonging. It includes a floor plan with complete dimensions, a foundation plan, elevations, a roof plan, wall sections, schedules, cabinet elevations, and an electrical plan. It features 4 bedrooms, 4 bathrooms, and 2 half bathrooms. It has a 3-stall garage, laundry access from the master suite, a flex room, and a study/office. The foundation can be slab, crawl space, or basement. With 10', 11', and vaulted ceiling heights, this home is ready to accommodate your life and style.

What's Included

Floor Plan: Complete dimensions. Provides designation of all rooms, closets, cabinets, stairs, etc. Windows and doors clearly indicated with sizing and door swing direction. Permanently installed equipment indicated (cabinets, built-ins, plumbing fixtures, HVAC units).

Foundation Plan: Provides Complete dimensions. Slab layout and details where applicable. All concrete footings, pad, foundation wall and grade beams are shown.

Elevations: Front, Rear, Left and Right-side exterior elevations. Indicates all exterior finish materials. Finished floor lines with vertical dimensions. Shows all window and door openings.

Roof Plan: Perimeter rooflines, hip, valley, and ridge locations. All roof pitches, overhangs and necessary dimensions.

Wall Sections: Full wall section through house. Necessary Framing Details.

Schedules: Door and Window sizes, Room Finishes and information.

Cabinet Elevations: Elevations of all cabinetry.

Electrical: Indicates schematic layout of all outlets, switches and fixtures.

What's Not Included

Stamps: Depending on the city, county, and state building requirements, house plans may need to be reviewed by an architect or engineer for structural details and code standards. Contact a local architect or engineer to verify the requirements for your location.

Site Plan: A site plan shows how the house will fit on the lot between the property lines and the setbacks. It also shows the driveway and where parking, drainage easements, utility easements, and walkways should be constructed. Contact a civil engineer or surveyor to obtain the site plan.

Mechanical Drawings: These types of drawings show information about heating, ventilation, and air conditioning. Contact a local HVAC company to obtain mechanical drawings.

Plumbing Drawings: Plumbing drawings show the location of all plumbing materials throughout the house and outside. Contact a local plumbing contractor.

Energy Calculations: Energy calculations determine how energy efficient your new home will be. Contact a local engineer to dictate these calculations.
