Plan 23-045
Copyright by Designer
Square Feet
3796
Bedrooms
4
Bathrooms
3
Garage Stalls
3
Floors
1
Half Baths
1
Width
103' 6"
Depth
88' 5"
Height
1'
Square Feet
3796
Bedrooms
4
Bathrooms
3
Garage Stalls
3
Floors
1
Half Baths
1
Width
103' 6"
Depth
88' 5"
Height
1'
Expert Plan Review
Before you build, get clarity. Our seasoned design team is ready to provide authoritative answers on techinal specifications and custom modifications.
Design Your Home
Need changes to make this plan truly yours? Get a quick, free estimate and personalized advice – let’s personalize this design to fit your specific needs today.
Design Your Home
Need changes to make this plan truly yours? Get a quick, free estimate and personalized advice – let’s personalize this design to fit your specific needs today.
Expert Plan Review
Before you build, get clarity. Our seasoned design team is ready to provide authoritative answers on techinal specifications and custom modifications.
Plan 23-045
Starting at
$1,500.00
$1,500.00
Features
Square Footage
Dimensions
Details
Style
Texas Hill Country, Modern Craftsman RanchOutdoor Features
Front Porch, Rear Porch, Outdoor KitchenBedroom and Bath Options
Bedrooms – Split, Master Bedroom at Rear, Master Suite – Sitting Area, Jack and Jill BathroomKitchen and Dining
Kitchen Island, Open Floor Plan, Walk-In PantryLaundry Location
Laundry Near Mud Room, Laundry Near KitchenAdditional Rooms
Flex Room, Study/OfficeGarage Type
Side EntryFoundation Type
Slab, Crawl Space, BasementPlan Description
As you approach Plan 23-045, you're greeted by a Modern Hill Country or Mountain Ranch design, a sophisticated architectural style that feels both grand and deeply connected to the earth. The facade showcases rugged, natural stone masonry in earthy shades, complemented by smooth, light-colored stucco accents. The complex roofline, with its dark charcoal-colored standing-seam metal, creates a visually stunning effect. Dark-framed windows of varying shapes, including arched windows with stone headers, add to the home's unique character. The heavy timber-framed front porch, complete with massive wood columns and decorative timber trusses, exudes warmth and invitation.

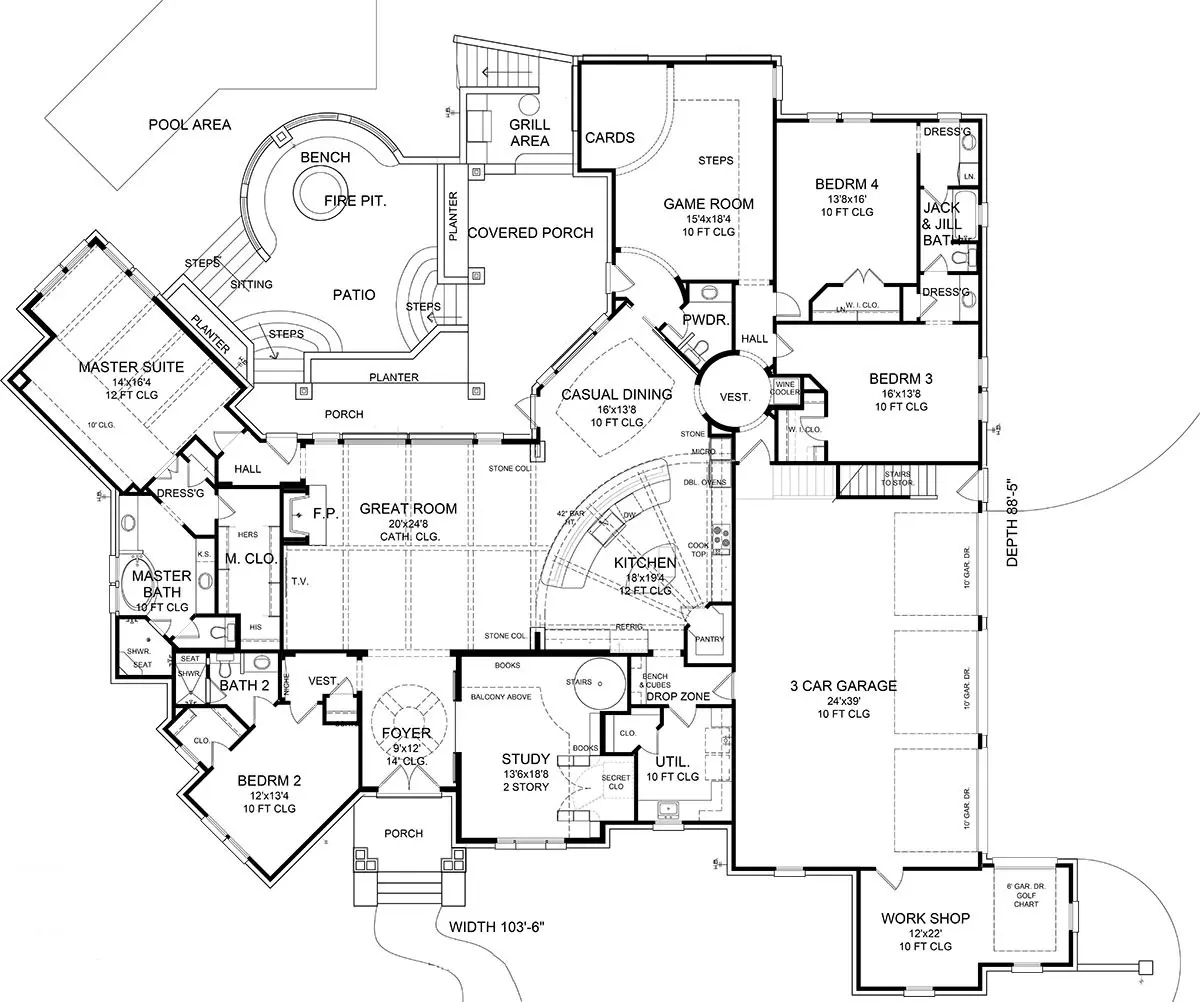

Stepping inside from the front porch, the foyer, with its soaring 14-foot ceiling, immediately makes you feel welcome. To your right, the grand two-story study, filled with built-in bookshelves and a balcony, presents an inspiring space for work or quiet reflection. The foyer seamlessly transitions into the heart of the home: a massive great room with a dramatic cathedral ceiling and a fireplace, perfect for cozy evenings.
The flow moves effortlessly into the open-concept kitchen and casual dining areas. The kitchen, featuring a large curved island and a walk-in pantry, is a chef's dream. The adjacent casual dining area opens to the rear covered porch, seamlessly blending indoor and outdoor living.
The master suite is a private retreat, thoughtfully separated from the rest of the home. The master bedroom, with its tray ceiling, feels spacious and luxurious. The ensuite master bath is designed for pampering, featuring dual vanities, a large walk-in shower, and separate his-and-hers walk-in closets. The relationship between the spaces is seamless and intimate, creating a personal sanctuary.
On the opposite side of the home, you'll find a dedicated wing for additional bedrooms and a large game room. The service and utility zone, located between the kitchen and the garage, offers convenience with a laundry room, drop zone, and powder room. The expansive three-car garage includes a workshop and golf cart storage area.
The outdoor living spaces are seamlessly integrated, featuring a large covered porch with a grill area, a tiered patio with a fire pit, and a designated pool area. The entire home is designed for both comfortable living and impressive entertaining, a true sanctuary where memories are waiting to be made.
What's Included
Floor Plan: Complete dimensions. Provides designation of all rooms, closets, cabinets, stairs, etc. Windows and doors clearly indicated with sizing and door swing direction. Permanently installed equipment indicated (cabinets, built-ins, plumbing fixtures, HVAC units).
Foundation Plan: Provides Complete dimensions. Slab layout and details where applicable. All concrete footings, pad, foundation wall and grade beams are shown.
Elevations: Front, Rear, Left and Right-side exterior elevations. Indicates all exterior finish materials. Finished floor lines with vertical dimensions. Shows all window and door openings.
Roof Plan: Perimeter rooflines, hip, valley, and ridge locations. All roof pitches, overhangs and necessary dimensions.
Wall Sections: Full wall section through house. Necessary Framing Details.
Schedules: Door and Window sizes, Room Finishes and information.
Cabinet Elevations: Elevations of all cabinetry.
Electrical: Indicates schematic layout of all outlets, switches and fixtures.
What's Not Included
Stamps: Depending on the city, county, and state building requirements, house plans may need to be reviewed by an architect or engineer for structural details and code standards. Contact a local architect or engineer to verify the requirements for your location.
Site Plan: A site plan shows how the house will fit on the lot between the property lines and the setbacks. It also shows the driveway and where parking, drainage easements, utility easements, and walkways should be constructed. Contact a civil engineer or surveyor to obtain the site plan.
Mechanical Drawings: These types of drawings show information about heating, ventilation, and air conditioning. Contact a local HVAC company to obtain mechanical drawings.
Plumbing Drawings: Plumbing drawings show the location of all plumbing materials throughout the house and outside. Contact a local plumbing contractor.
Energy Calculations: Energy calculations determine how energy efficient your new home will be. Contact a local engineer to dictate these calculations.
