Plan 23-037
Copyright by Designer
Square Feet
3261
Bedrooms
4
Bathrooms
3
Garage Stalls
2
Floors
2
Half Baths
1
Width
57' 11"
Depth
53' 11"
Height
1'
Square Feet
3261
Bedrooms
4
Bathrooms
3
Garage Stalls
2
Floors
2
Half Baths
1
Width
57' 11"
Depth
53' 11"
Height
1'
Expert Plan Review
Before you build, get clarity. Our seasoned design team is ready to provide authoritative answers on techinal specifications and custom modifications.
Design Your Home
Need changes to make this plan truly yours? Get a quick, free estimate and personalized advice – let’s personalize this design to fit your specific needs today.
Design Your Home
Need changes to make this plan truly yours? Get a quick, free estimate and personalized advice – let’s personalize this design to fit your specific needs today.
Expert Plan Review
Before you build, get clarity. Our seasoned design team is ready to provide authoritative answers on techinal specifications and custom modifications.
Plan 23-037
Starting at
$1,500.00
$1,500.00
Features
Square Footage
Dimensions
Details
Style
Texas Hill Country, Modern MediterraneanOutdoor Features
Front Porch, Rear PorchBedroom and Bath Options
Bedrooms – Split, Master Bedroom at Rear, Master Suite – 1st Floor, Master Suite – Sitting Area, Jack and Jill BathroomKitchen and Dining
Breakfast Nook, Kitchen Island, Open Floor Plan, Walk-In Pantry, Formal DiningLaundry Location
Laundry Near KitchenAdditional Rooms
Den, Flex RoomGarage Type
Front EntryFoundation Type
Slab, Crawl Space, BasementPlan Description

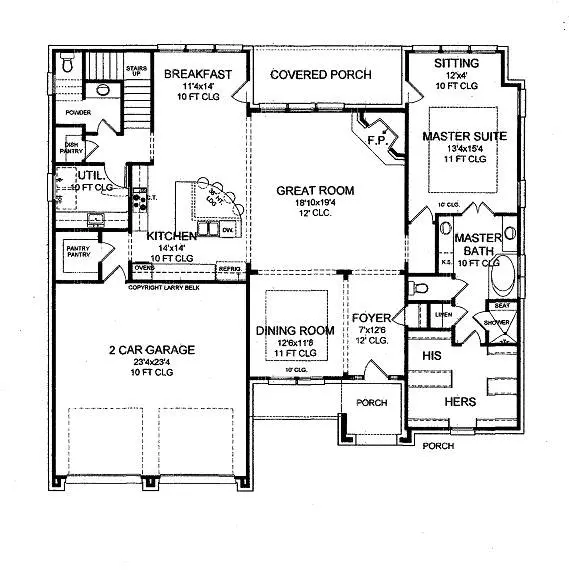

Stepping into Plan 23-037, you're greeted by a harmonious blend of Texas Hill Country charm and Modern Mediterranean elegance. The heart of this home is the expansive great room, where a corner fireplace casts a warm glow, inviting you to unwind and create lasting memories. The open kitchen, complete with a central island and walk-in pantry, flows seamlessly into the breakfast nook, making it easy to imagine joyful mornings filled with laughter and delicious meals.

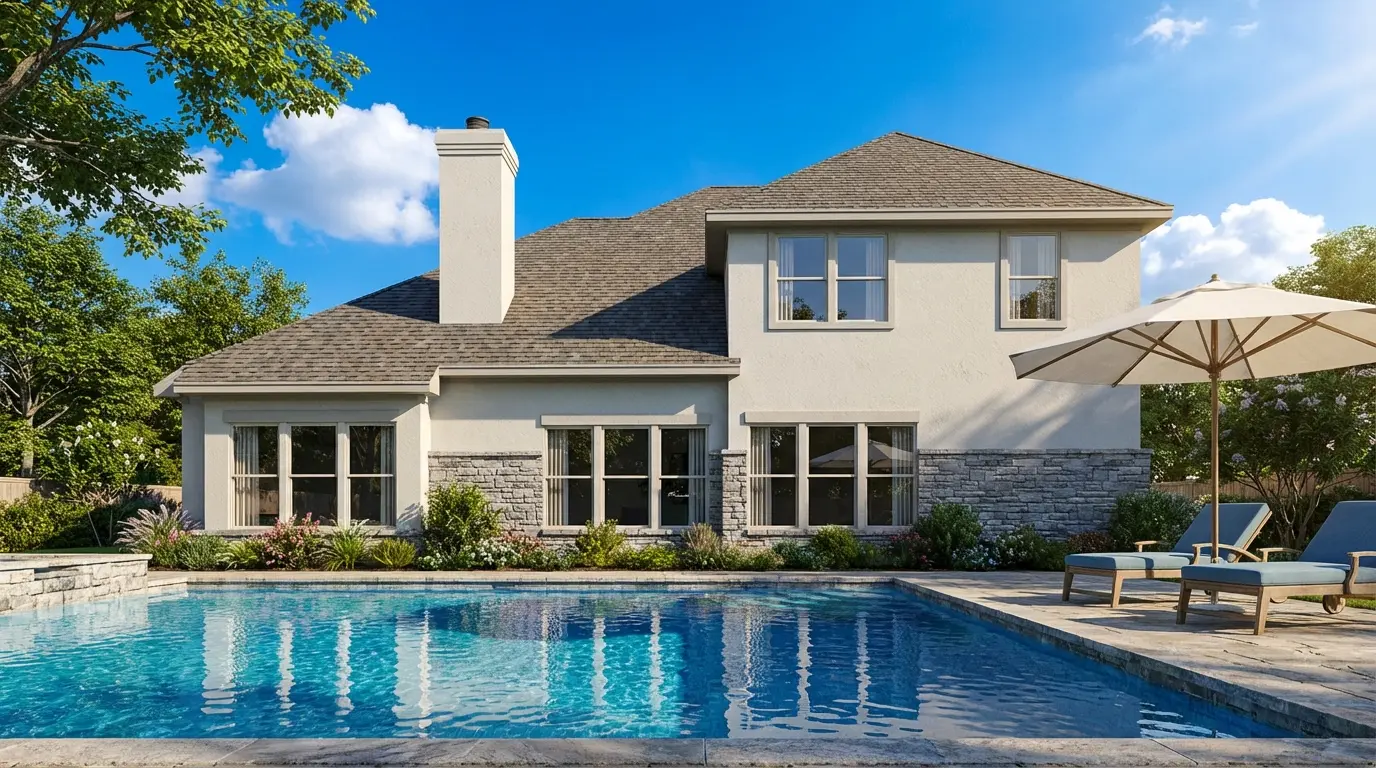

The primary suite is a sanctuary of privacy and comfort. Tucked away on the opposite side of the home from the additional bedrooms, it features a sitting area, and a luxurious master bathroom with separate vanities, a soaking tub, and a separate shower. The his and hers walk-in closets offer ample space for your wardrobe, creating a personal retreat where you can relax and recharge. With private access to the rear-covered porch, you can easily slip outside to enjoy a quiet evening under the stars.

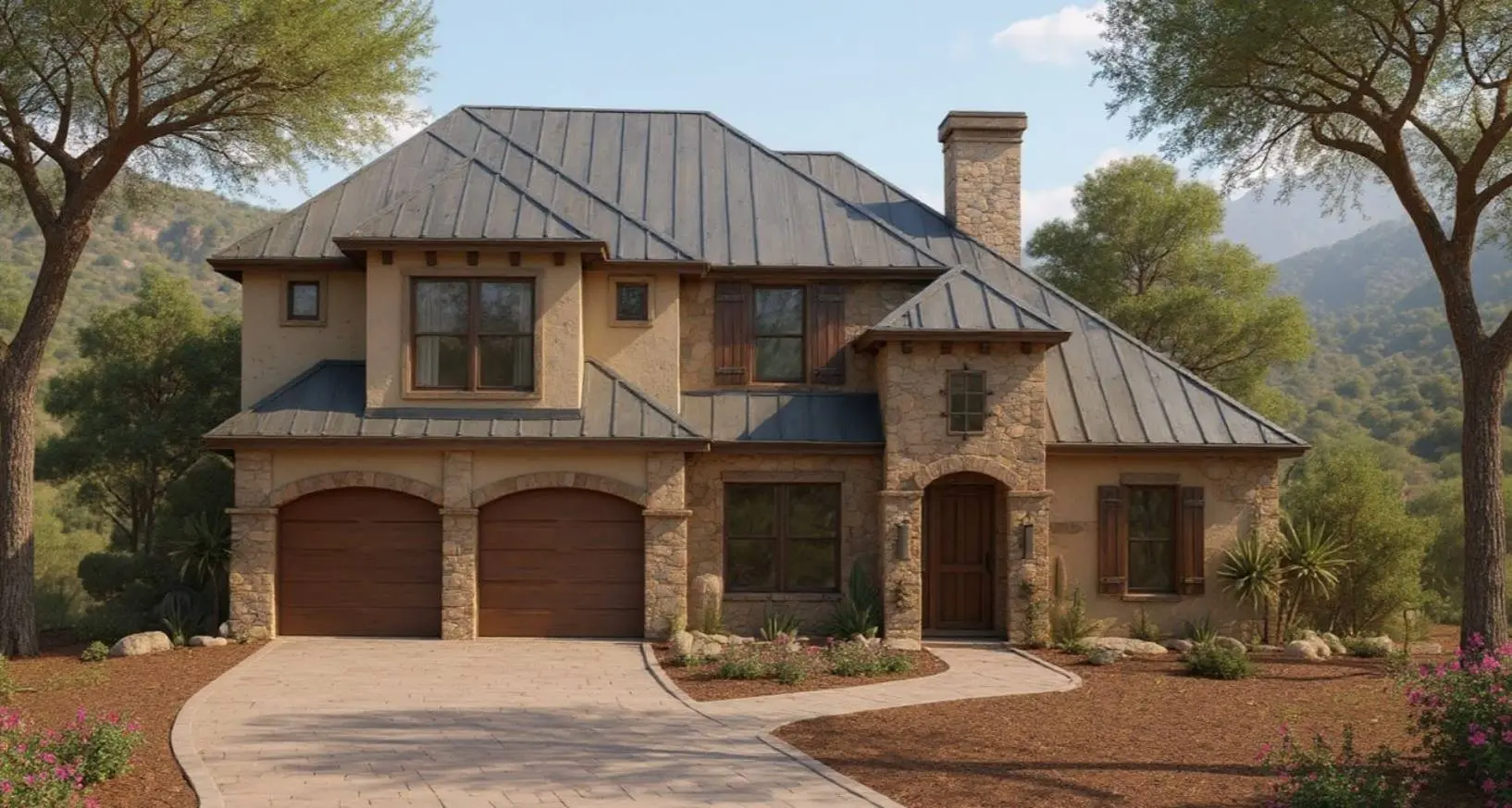

Upstairs, the second floor is designed with family and guests in mind. A large game and media room becomes the perfect spot for entertainment and relaxation. Each of the three additional bedrooms has its own unique charm. The architectural style is a Mediterranean-influenced transitional design, characterized by a mix of rustic materials and refined details. The facade is finished with a combination of irregular-cut stone masonry and smooth tan stucco. The overall impression is one of a substantial, high-quality residence that feels both grand and inviting through its use of natural textures and balanced proportions.
What's Included
Floor Plan: Complete dimensions. Provides designation of all rooms, closets, cabinets, stairs, etc. Windows and doors clearly indicated with sizing and door swing direction. Permanently installed equipment indicated (cabinets, built-ins, plumbing fixtures, HVAC units).
Foundation Plan: Provides Complete dimensions. Slab layout and details where applicable. All concrete footings, pad, foundation wall and grade beams are shown.
Elevations: Front, Rear, Left and Right-side exterior elevations. Indicates all exterior finish materials. Finished floor lines with vertical dimensions. Shows all window and door openings.
Roof Plan: Perimeter rooflines, hip, valley, and ridge locations. All roof pitches, overhangs and necessary dimensions.
Wall Sections: Full wall section through house. Necessary Framing Details.
Schedules: Door and Window sizes, Room Finishes and information.
Cabinet Elevations: Elevations of all cabinetry.
Electrical: Indicates schematic layout of all outlets, switches and fixtures.
What's Not Included
Stamps: Depending on the city, county, and state building requirements, house plans may need to be reviewed by an architect or engineer for structural details and code standards. Contact a local architect or engineer to verify the requirements for your location.
Site Plan: A site plan shows how the house will fit on the lot between the property lines and the setbacks. It also shows the driveway and where parking, drainage easements, utility easements, and walkways should be constructed. Contact a civil engineer or surveyor to obtain the site plan.
Mechanical Drawings: These types of drawings show information about heating, ventilation, and air conditioning. Contact a local HVAC company to obtain mechanical drawings.
Plumbing Drawings: Plumbing drawings show the location of all plumbing materials throughout the house and outside. Contact a local plumbing contractor.
Energy Calculations: Energy calculations determine how energy efficient your new home will be. Contact a local engineer to dictate these calculations.
